Feature SCX Speed Control

Thanks to the patent pending SCX Speed Control feature on Walker View you can chose to switch from manual control to a total autonomous control of the belt speed.

The electronics that control the SCX feature allows Walker View to automatically recognise the user's gesture, who can regulate the passage from a walk to a run and vice versa, change the rhythm at any time, until the belt stoops completely with his simple instinctive gesture.

With SCX Speed Control, the operator obtains even more precise reports on runners and patients undergoing stroke and gait analysis. A unique experience is guaranteed for the user, comparable to that carried out outdoors on the road.

The control of the supports with Walker View

Only the maximum control of the dynamic posture and the support of the foot guarantee the quality of the movement and the limitation of injuries and imbalances.

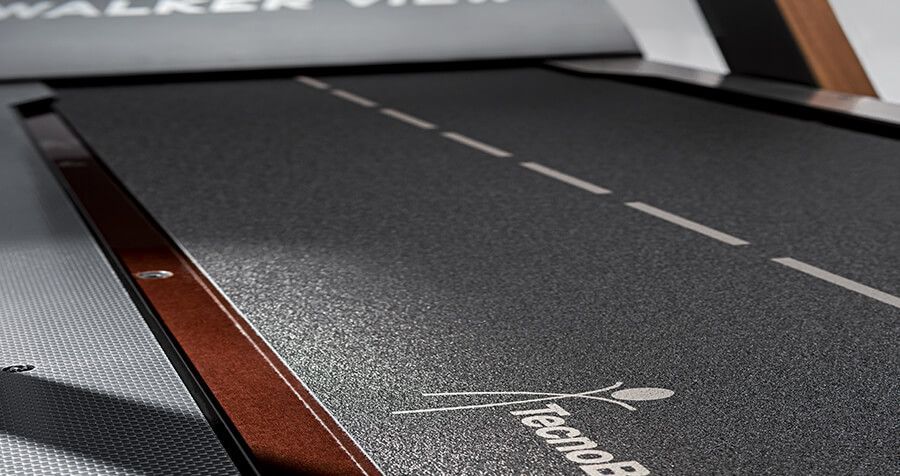

Walker View is equipped with a sensitised belt with eight load cells. These allow the postural analysis and contribute, together with the software interface and the 3D camera, to the return of a complete report of Gait Analysis or Run Analysis, printable at the end of the test.

You will discover in real time during walking or running, how to improve posture and increase performance in a safe way.

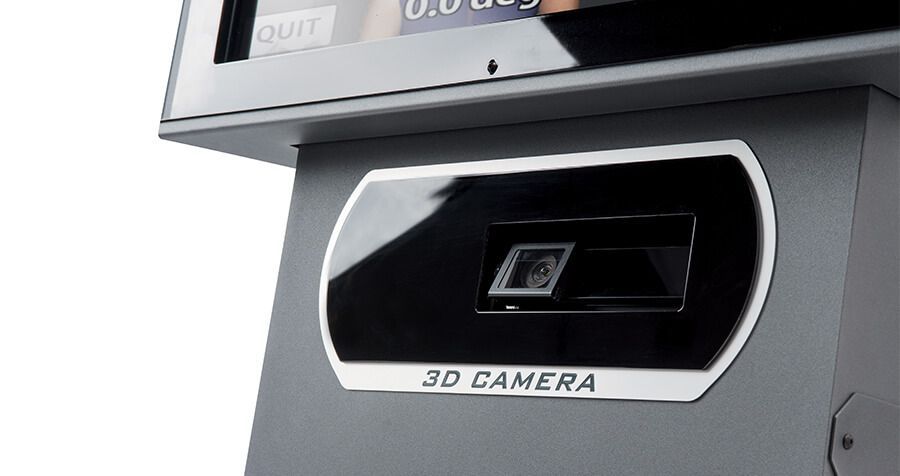

3D camera: the heart of Walker View

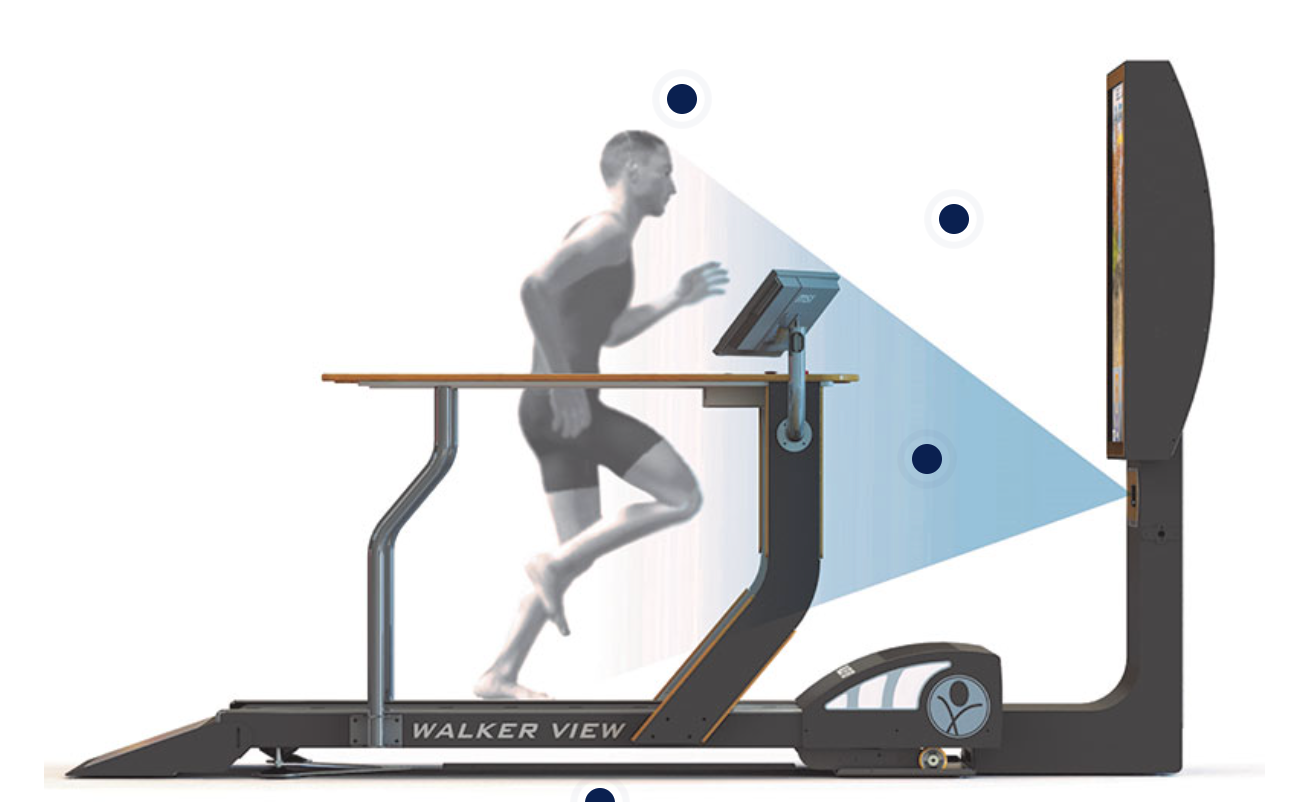

The 3D camera, the heart of the system, picks up the subject that is placed in position on Walker View and performs walking or running.

The camera creates an instant and objective dynamic image of the posture during training, displayed in real time on the Full HD screen of the system. The posture of the arms during the run, the support of the feet, the bending of the front and back and the side are just some of the postural aspects analysed and visible in the live shooting.

Performing a test on Walker View allows you to move better, free from injuries and discover strengths and weaknesses of your support, to correct bad posture in the race and the problems arising from it.

Virtual reality and immersion with Walker View

A complete and immersive visual experience to involve athletes and patients and complete the training session, helping functional recovery. Focusing on support or completing a controlled training session will no longer be boring and demotivating for your client. It will now be engaging and motivating.

City, countryside, wood or mountain views......choose where to set the training. Choose walker View for your objective and detailed movement analysis.

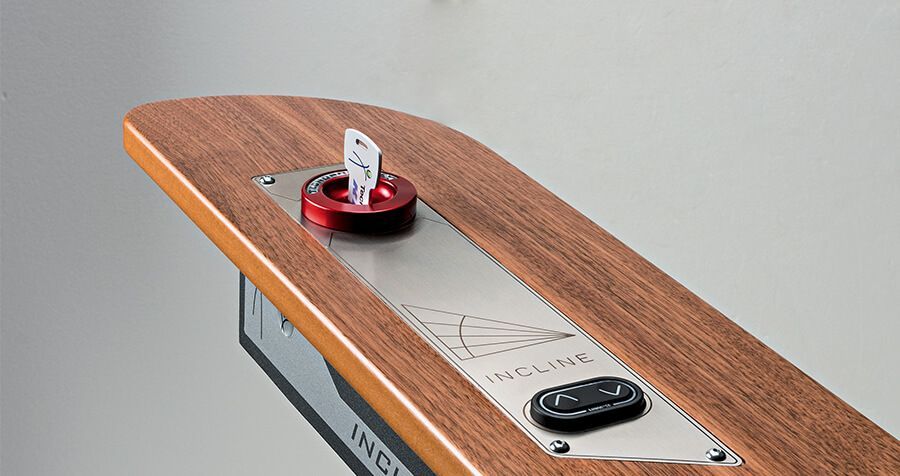

TecnoBody Key, your training at your fingertips

An exclusive connection between the user and the system: the TecnoBody Key allows you to save your parameters, workouts and reports, always available for constant feedback and to set up your own personalised plans.

The assessment of strength, balance, stability and elasticity are always available because the Key is recognised by the system at any time. Through the Key you and your patient can constantly monitor the progress of the rehabilitation process and set up any changes to the physical rehabilitation program.

Gait trainer, rehabilitation of the transit with Walker View

Motor learning, both in adults and children, uses the principle of observation. As the patient observes and copies the movement, the patient can see themselves during the rehabilitation process.

Consciousness at the cognitive level has a direct confirmation on the coordination of movements and the Gait Trainer module contributes to the recovery of the motor pathway. Postural re-education takes place through an awareness guided by continuous and immediate feedback

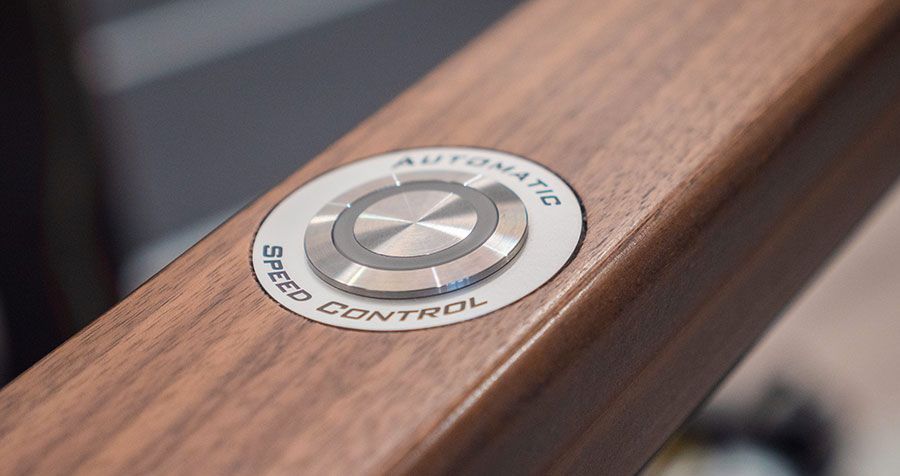

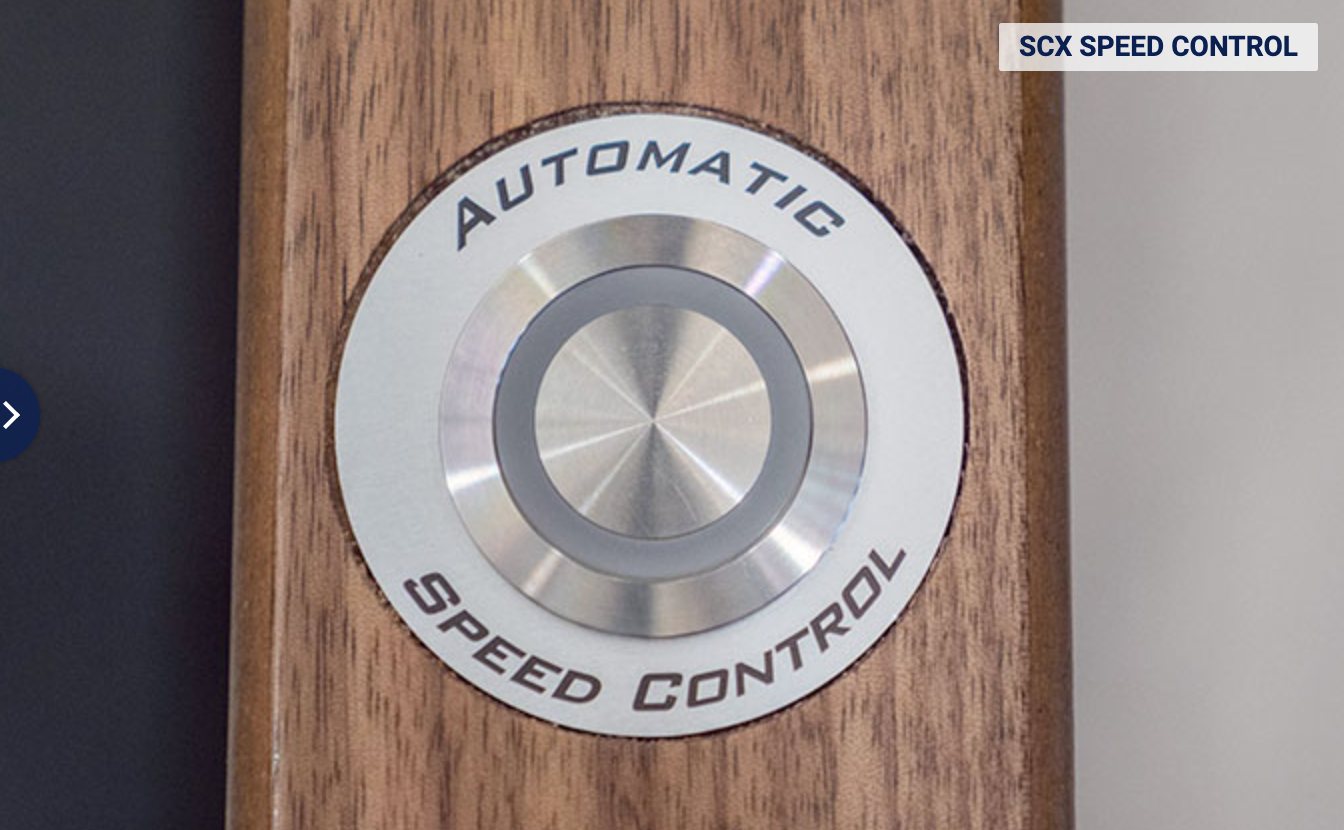

A revolutionary button

What does self-adaptive treadmill mean?

The Walker View 3.0 SCX treadmill adapts to the gesture of the user, whether he is a patient engaged in walking or an athlete while he’s running. This means that the user is intuitive to determine the actuation of the system, the speed of the belt and the stop, through:

• Position detection in front of the 3D camera: In just 5 seconds the system recognises and marks the patient or runner on the belt.
• 3D Camera: The 3D volumetric camera is able to detect the position of the joints and any movement of the subject.
• Sensorised base with load cells: The 8 load cells under the tape detect the subject's loads, the length and the variation of the step.
• SENSOR FUSION: The interaction between load cells, 3D camera and software re-elaboration summarises the information necessary to obtain a complete analysis of the step and stroke.
• Real time bio-feedback - The Full HD 49" screen is the digital mirror in which the subject displays their image, the analysis of the gesture and the detailed report data processed by the system, everything in real time.

Specifications

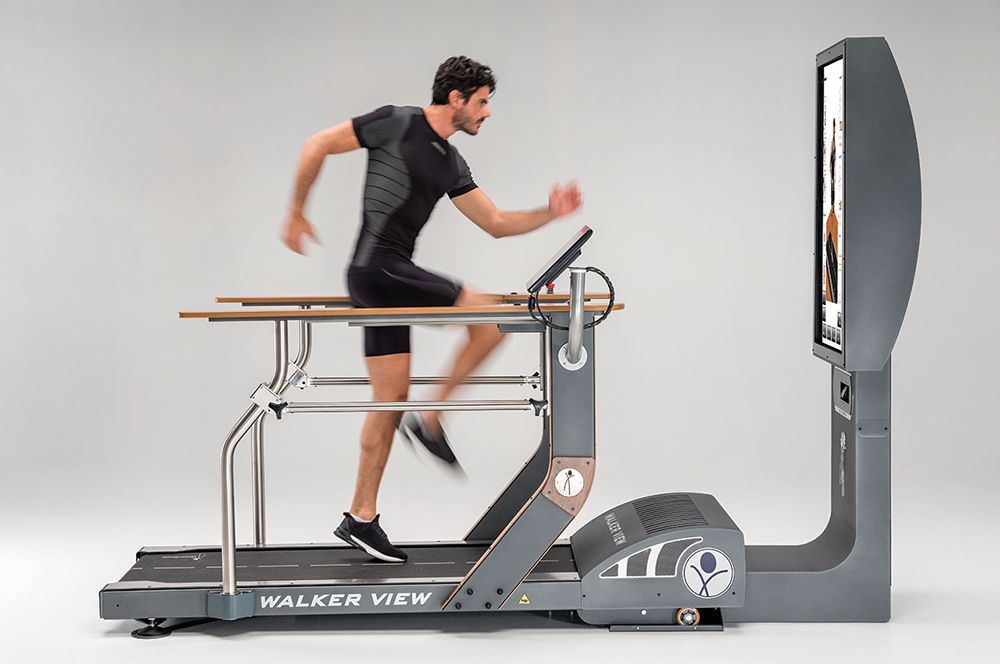

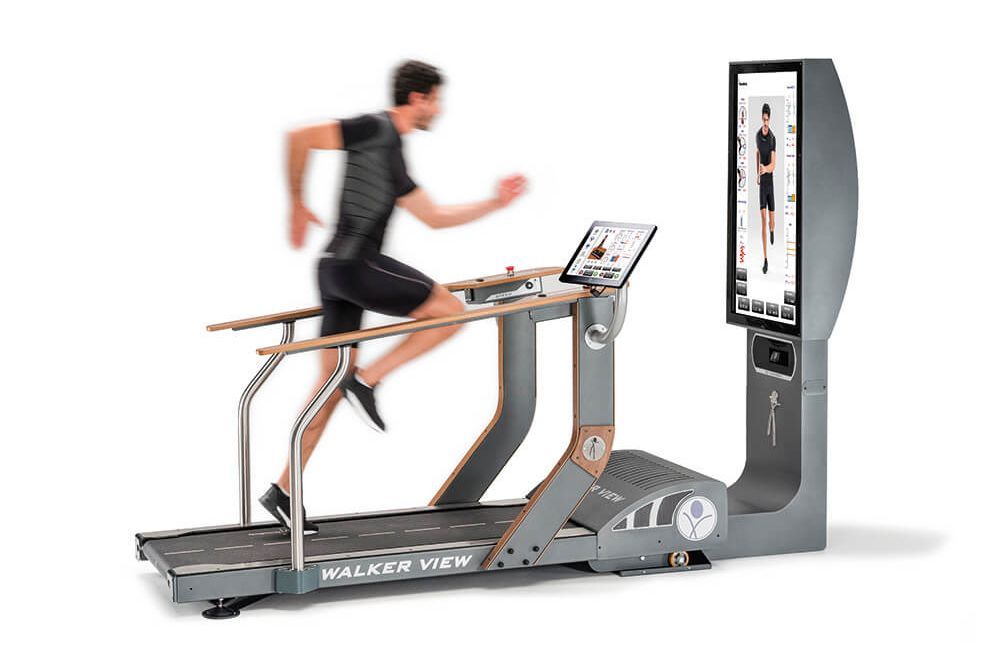

WalkerView is a Treadmill for sports medicine, rehabilitation and gait/motion analysis.

It is equipped with a control PC with touchscreen (16 "), max 49" LCD monitor, a load sensing surface (force sensor matrix) and a 3D Camera for motion capture.

General

• PC Control Touch-Screen 16”
• 49 ”LCD Monitor for virtual reality and biofeedback
• Gait Analysis through 3D Camera and Strength Platform
• Integrated 3D camera for motion capture
• TecnoBody Key for connection to the TecnoBody Management System

Dimensions L: 2750 mm P: 900 mm A:2050 mm

Weight: +/- 280 kg (617 lbs)

Running surface: L:160 cm (63’’) P:51 cm (20’’)

Access height: 15,5 cm (6’’) low profile

Speed range: 0-20 km/h (0-12.42 mph)

Incremental step: 0,2 km/h (0.12 mph)

Elevation: 0-15 % (8,53°)

Heart rate:  monitoring POLAR HR

PC interface: Completely programmable in terms of speed, elevation and heart rate

Function The software includes the ability to work with different modules, both to perform assessments, to perform training and rehabilitation

Motor system: 2 KW (2.6 HP)

Load range: 0-150 kg (0-330 lbs)

Precision: 0,5 kg (17.6 oz)

Electric parameters: 230 VAC, 50 hz, 15 A, dedicated line

Power: 2,5 KW

Conformity Directive: 93/42/EEC - Standard EN 60601-1

Guarantee: 12 months

Software

TecnoBody Management System



Thanks to the patent pending SCX Speed Control feature, on Walker View you can choose to switch from a manual control to a total autonomous control of the belt speed.

The electronics that control the SCX feature allows Walker View to automatically recognise the user's gesture, who can regulate the passage from a walk to a run and vice versa, change the rhythm at any time, until the belt stops completely with his simple instinctive gesture.

With SCX Speed Control, the operator obtains even more precise reports on runners and patients undergoing stroke and gait analysis. A unique experience is guaranteed for the user, comparable to that carried out outdoors on the road.

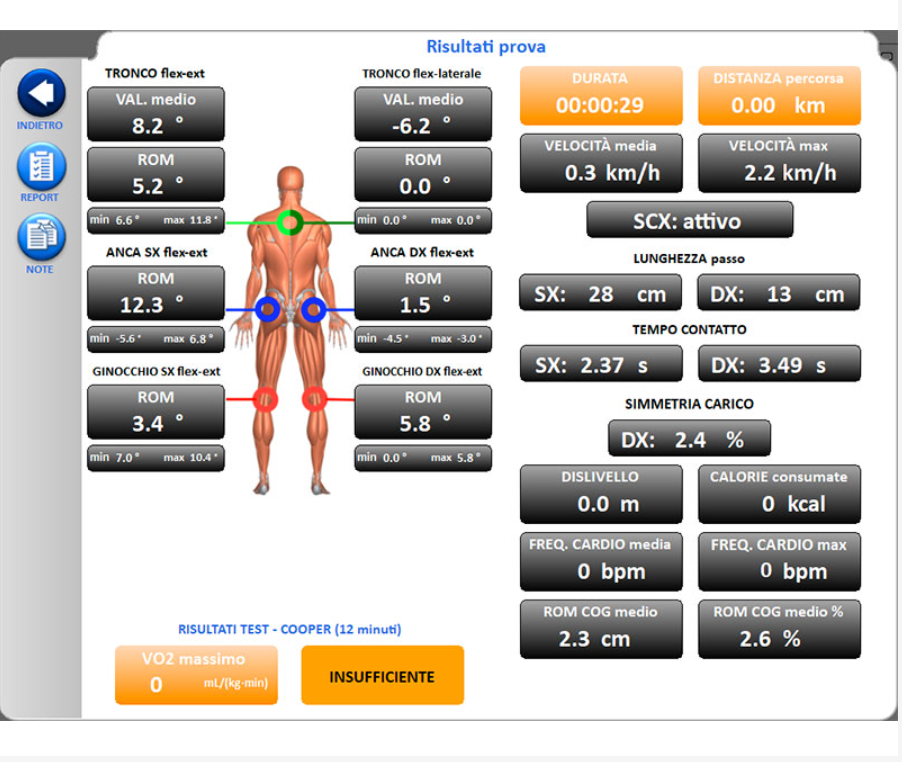

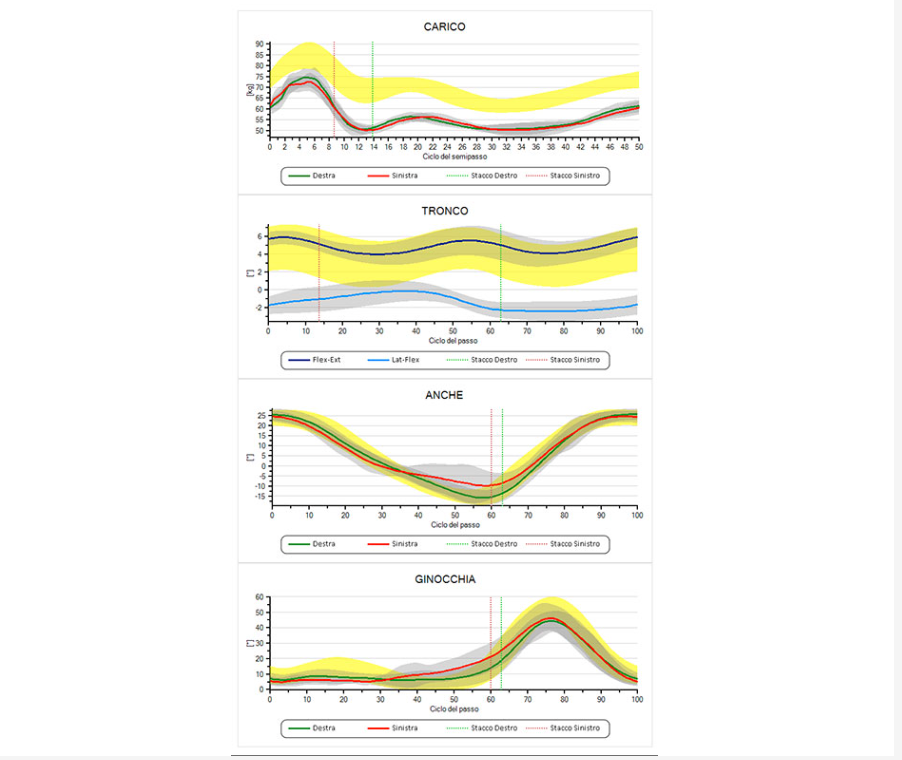

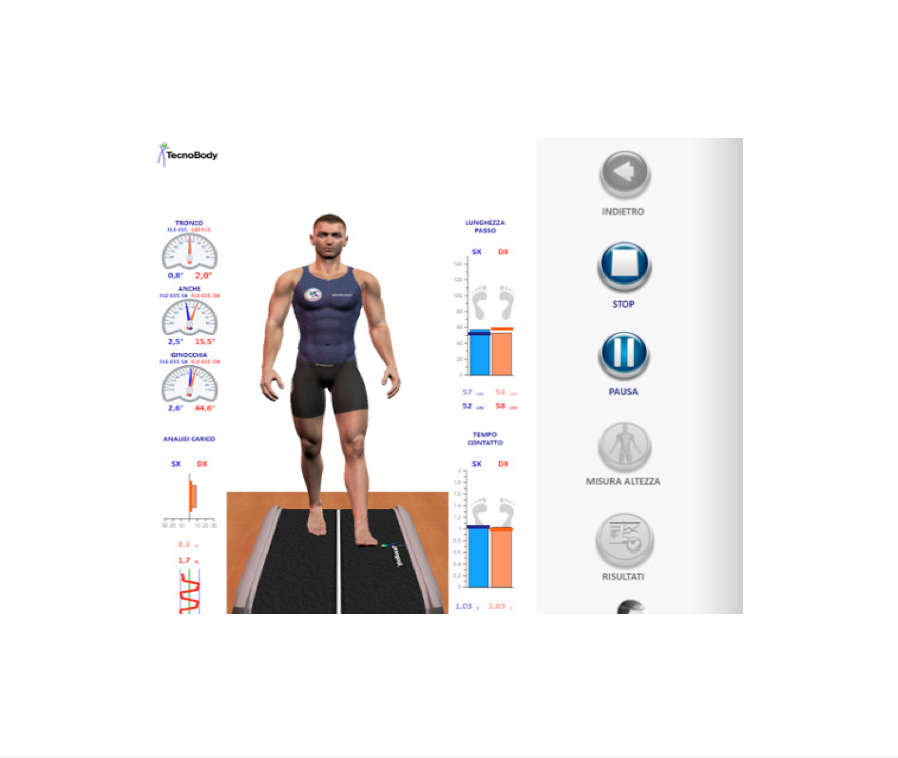

Gait Analysis and Run Analysis

The Gait Analysis module allows you to perform a complete postural analysis while walking and in the same way the module dedicated to Run Analysis is focused on running, for all the runner's needs.

During the tests, all data relating to the phases of the step are collected to return a detailed report on:

• support times for each foot;
• Step length;
• joint rotations of ankle, knee and hip;
• vertical displacement of the CoG and many other data.

All the data collected contribute to building a picture of possible balance and posture disturbances during walking or running.

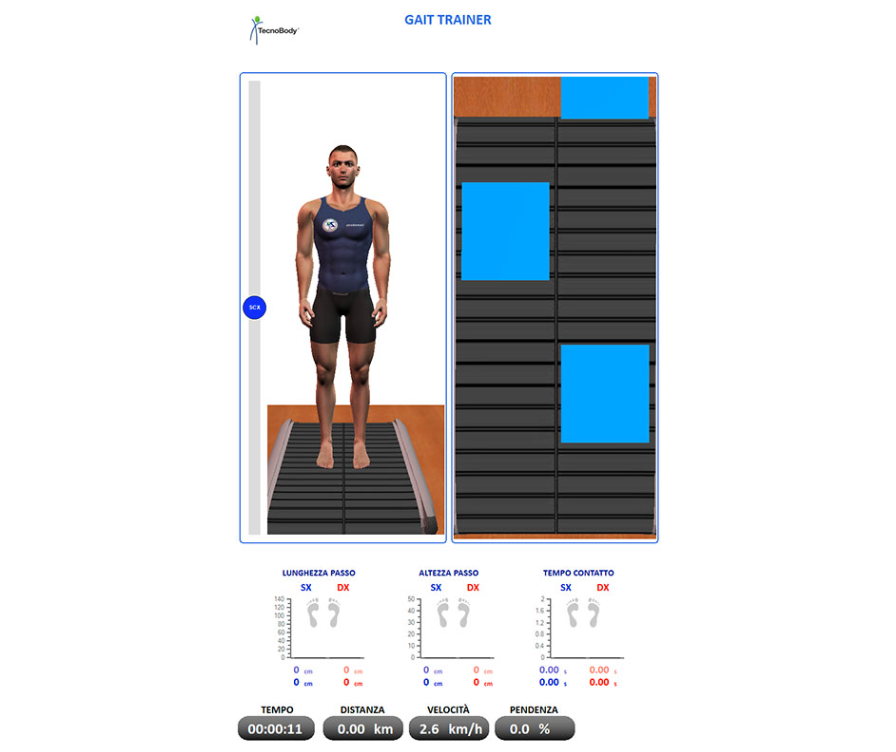

Gait Trainer

The Gait Trainer module allows the operator to reconstruct a mapping o the patient's or athlete's pace through a bio-feedback correction of the gait.

The correction takes place thanks to the presence of regulatory bands in the graphics reproduced on the screen for the user who carries out the test, together with the acoustic signals that warn of any incorrect step length.

Other tests and features

The tests that can be performed on Walker View 3.0 SCX are numerous.

Among these you will find:

• The Walk Test: 6 minutes of accurate support analysis;
• Balke's incremental test, which allows to evaluate aerobic consumption;
• The Cooper Test, which guarantees the evaluation of the maximum running speed and the setting of a personalized running training.

The training modules also allow you to set a course for the user with virtual settings that combine the evasive and playful aspect with the functionality of Walker View 3.0 SCX.
